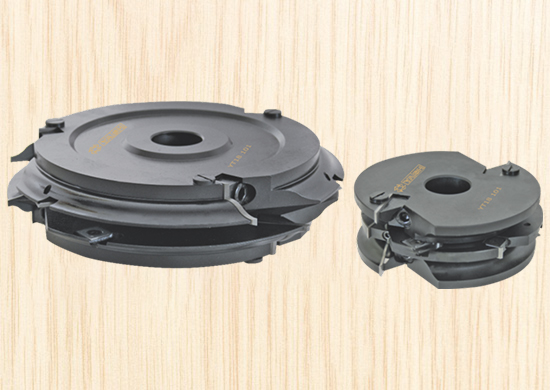

Cutter Head Set For Door Extra Long Tenon (Replaceable)
YTR 16

Name: Woodworking Tools, Woodworking Tools Manufacturers In India, Wood Working Tools Machines, Woodworking Hand Tools
Address: Plot No. 462, Road No. 12,, Kathwada G.I.D.C., Odhav, Ahmedabad -382 430,, Gujarat, 382430, IN
Price range: Rs
Rating: 4.9/5

Cutter Head Set for Door Replaceable.

Application: The heads for making profiles & counter profiles are fitted with profiled knives 1 & 2 which are then interchangeable. Extra long tenons give good quality of door-working while making doors very sturdy.

Technical Details

Use on Spindle Moulder
NOTE: Any Customized Specifications Also Can Make As Per Requirements

Pair Knives

Optional Knives

Note: You need a separate tool body for these 2 Designs.

PRODUCTS DESCRIPTION

ORDER CODE	DIA	WOOD THICKNESS	BORE	TEETH

ORDER CODE	DIA	WOOD THICKNESS	BORE	TEETH
YTR 16 101	125/200	32 To 40	30/31.75/35	3 + 2
YTR 16 102	125/200	32 To 40	30/31.75/35	3 + 2
YTR 16 103	125/200	32 To 40	30/31.75/35	3 + 2
YTR 16 104	125/200	32 To 40	30/31.75/35	3 + 2
YTR 16 105	125/200	32 To 40	30/31.75/35	3 + 2
YTR 16 106	125/200	32 To 40	30/31.75/35	3 + 2

Knives	20 x 30 x 2
Screw	M8x12
Spure	14x14x2
Screw	M5 x 2 C
Knives	7.5 x 12 x 1.5
Wedge	12x12x7
Stopper	M5x8B
Torx Key	3mm/8mm
