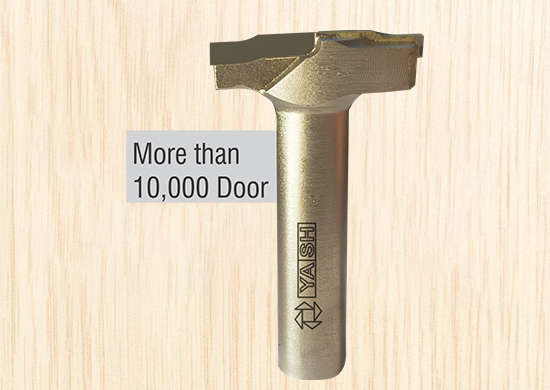

PCD Membrane Router Bit
YTP 8
Pcd Membrane Router Bits
Tool life is expected to be up to 25 times longer when compared with carbide-tipped tooling Saves time and money and Consistently good component surface finish.
Specifications
PRODUCTS DESCRIPTION

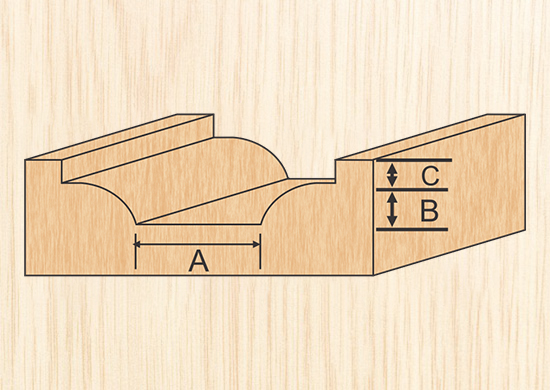

| ORDER CODE | DIA | A | B | SHANK |
|---|---|---|---|---|
| YTP 8 101 | 25 | 10 | 1 | 12 |
| YTP 8 102 | 25 | 10 | 1.5 | 12 |
| YTP 8 103 | 25 | 10 | 2 | 12 |
| YTP 8 104 | 25 | 10 | 2.5 | 12 |
| YTP 8 105 | 25 | 10 | 3 | 12 |
| YTP 8 106 | 25 | 10 | 4 | 12 |
| YTP 8 107 | 30 | 14 | 1 | 12 |
| YTP 8 108 | 30 | 14 | 1.5 | 12 |
| YTP 8 109 | 30 | 14 | 2 | 12 |
| YTP 8110 | 30 | 14 | 2.5 | 12 |
| YTP 8111 | 30 | 14 | 3 | 12 |
| YTP 8 112 | 30 | 14 | 4 | 12 |
| YTP 8113 | 32 | 15 | 1 | 12 |
| YTP 8114 | 32 | 15 | 1.5 | 12 |
| YTP 8 115 | 32 | 15 | 2 | 12 |
| YTP 8116 | 32 | 15 | 2.5 | 12 |
| YTP 8 117 | 32 | 15 | 3 | 12 |
| YTP 8 118 | 32 | 15 | 4 | 12 |
| ORDER CODE | DIA | A | B | SHANK |
|---|---|---|---|---|
| YTP 8 119 | 35 | 17 | 1 | 12 |
| YTP 8 120 | 35 | 17 | 1.5 | 12 |
| YTP 8 121 | 35 | 17 | 2 | 12 |
| YTP 8 122 | 35 | 17 | 2.5 | 12 |
| YTP 8 123 | 35 | 17 | 3 | 12 |
| YTP 8 124 | 35 | 17 | 4 | 12 |
| YTP 8 125 | 38 | 18 | 1 | 12 |
| YTP 8 126 | 38 | 18 | 1.5 | 12 |
| YTP 8 127 | 38 | 18 | 2 | 12 |
| YTP 8 128 | 38 | 18 | 2.5 | 12 |
| YTP 8 129 | 38 | 18 | 3 | 12 |
| YTP 8 130 | 38 | 18 | 4 | 12 |
| YTP 8 131 | 40 | 20 | 1 | 12 |
| YTP 8 132 | 40 | 20 | 1.5 | 12 |
| YTP 8 133 | 40 | 20 | 2 | 12 |
| YTP 8 134 | 40 | 20 | 2.5 | 12 |
| YTP 8 135 | 40 | 20 | 3 | 12 |
| YTP 8 136 | 40 | 20 | 4 | 12 |
