Raised Panel Router Bit (Replaceable)
YTR 29

Name: Woodworking Tools, Woodworking Tools Manufacturers In India, Wood Working Tools Machines, Woodworking Hand Tools
Address: Plot No. 462, Road No. 12,, Kathwada G.I.D.C., Odhav, Ahmedabad -382 430,, Gujarat, 382430, IN
Price range: Rs
Rating: 4.9/5

Replaceable CNC Router Bit.

Application: Specially designed to perform difficult trimming operations. these bits are both indispensable and economical. Flush trim bits with two replaceable knives fixed by special TORX® screws. The 2-sided blades can create extra new edges.

Technical Details:

Use on CNC Router Machine
NOTE: Any Customized Specifications Also Can Make As Per Requirements

Raised Panel Router Bit ( Replaceable ) - YTR 29

PRODUCTS DESCRIPTION

ORDER CODE	DIA	MOULDING SIZE	SHANK	TEETH
YTR 29 101	100	40 x 18	16/20	2
YTR 29 102	100	50 x 18	16/20	2

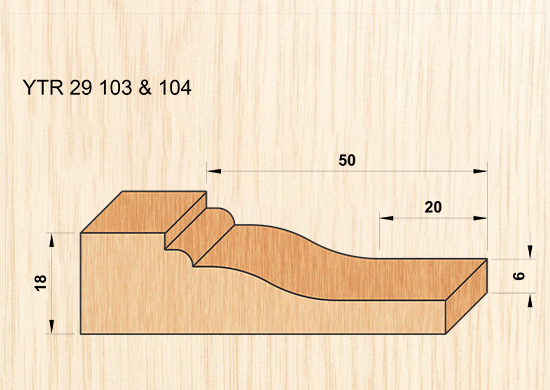

YTR 29 103	100	40 x 18	16/20	2
YTR 29 104	100	50 x 18	16/20	2
YTR 29 105	100	40 x 18	16/20	2
YTR 29 106	100	50 x 18	16/20	2
YTR 29 107	100	40 x 18	16/20	2
YTR 29 108	100	50 x 18	16/20	2
YTR 29 109	100	40 x 18	16/20	2
YTR 29 110	100	50 x 18	16/20	2
YTR 29 111	100	40 x 18	16/20	2
YTR 29 112	100	50 x 18	16/20	2

SPARE

ORDER CODE	KNIFE	SCREW	STOPPER
YTR 29	50X25X2	M4 X 5B	MS X 8B
