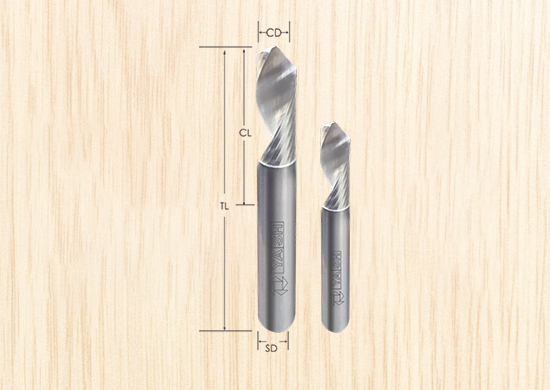

Single Flute Solid Carbide Spiral End Mill
YTS 5 (Standard Length)
Solid Carbide Single Flute End-Mill.
Application: Used for efficient contour cutting. end-trimming and panel sizing on solid wood, wood composites, plastic materials, and laminates at high feed speed. Ensure to clamp workpieces properly.
Technical Details:
PRODUCTS DESCRIPTION
Spiral Standard Length
| ORDER CODE | DIA | CUTTING LENGTH | TOTAL LENGTH | SHANK |
|---|---|---|---|---|
| YTS 5 101 | 1 | 6 | 38 | 3 |
| YTS 5 102 | 2 | 8 | 38 | 3 |
| YTS 5 103 | 3 | 15 | 38 | 3 |
| YTS 5 104 | 4 | 22 | 45 | 4 |
| YTS 5 105 | 5 | 22 | 50 | 5 |
| YTS 5 106 | 6 | 25 | 50 | 6 |
| YTS 5 107 | 8 | 30 | 60 | 8 |
| YTS 5 108 | 10 | 30 | 70 | 10 |
| YTS 5 109 | 12 | 30 | 75 | 12 |
Spiral Long Length
| ORDER CODE | DIA | CUTTING LENGTH | TOTAL LENGTH | SHANK |
|---|---|---|---|---|
| YTS 5 110 | 6 | 35 | 70 | 6 |
| YTS 5 111 | 8 | 40 | 75 | 8 |
| YTS 5112 | 6 | 50 | 100 | 6 |
| YTS 5 113 | 8 | 50 | 100 | 8 |
| YTS 5 114 | 10 | 50 | 100 | 10 |
