Single Knife Router For MDF (Replaceable)
YTR 24
Replaceable CNC Router Bit.
Application: Specially designed to perform difficult trimming operations. these bits are both indispensable and economical. Flush trim bits with two replaceable knives fixed by special TORX® screws. The 2-sided blades can create extra new edges.
Technical Details:
PRODUCTS DESCRIPTION
| ORDER CODE | DIA | DEPTH | SHANK | TEETH |
|---|---|---|---|---|
| YTR 24 101 | 35 | 4mm/6mm/8mm | 12 | 1 |
| YTR 24 102 | 35 | 4mm/6mm/8mm | 12 | 1 |

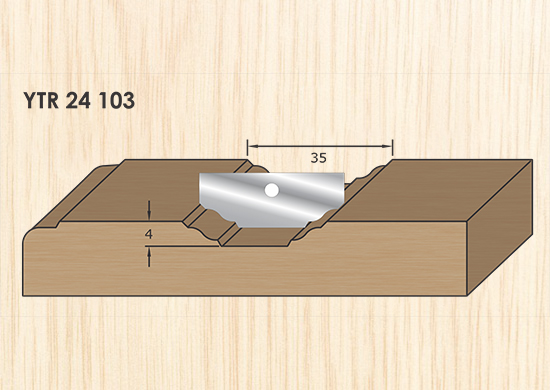

| YTR 24 103 | 35 | 4mm/6mm/8mm | 12 | 1 |
| YTR 24 104 | 35 | 4mm/6mm/8mm | 12 | 1 |
| YTR 24 105 | 35 | 4mm/6mm/8mm | 12 | 1 |
SPARE
| KNIFE | SCREW |
|---|---|
| 35 X 25 X 2 | M4 X 8B |
| 35 X 25 X 2 | M4 X 8B |
| 35 X 25 X 2 | M4 X 8B |
| 35 X 25 X 2 | M4 X 8B |
| 35 X 25 X 2 | M4 X 8B |
| ORDER CODE | DIA | DEPTH ( H ) | SHANK | TEETH |
|---|---|---|---|---|
| YTR 24 106 | 35 | 4mm/6mm/8mm | 12 | 1 |
| YTR 24 107 | 35 | 4mm/6mm/8mm | 12 | 1 |
| YTR 24 108 | 35 | 4mm/6mm/8mm | 12 | 1 |

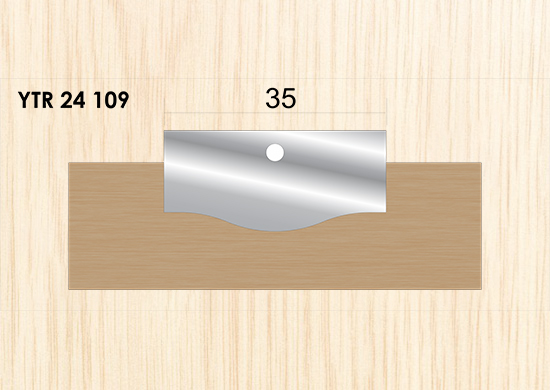

| YTR 24 109 | 35 | 4mm/6mm/8mm | 12 | 1 |
| YTR 24 110 | 35 | 4mm/6mm/8mm | 12 | 1 |
| YTR 24 111 | 35 | 4mm/6mm/8mm | 12 | 1 |
| YTR 24 112 | 35 | 4mm/6mm/8mm | 12 | 1 |
| YTR 24 113 | 35 | 4mm/6mm/8mm | 12 | 1 |
SPARE
| KNIFE | SCREW |
|---|---|
| 35 X 25 X 2 | M4 X 8B |
| 35 X 25 X 2 | M4 X 8B |
| 35 X 25 X 2 | M4 X 8B |
| 35 X 25 X 2 | M4 X 8B |
| 35 X 25 X 2 | M4 X 8B |
| 35 X 25 X 2 | M4 X 8B |
| 35 X 25 X 2 | M4 X 8B |
| 35 X 25 X 2 | M4 X 8B |
