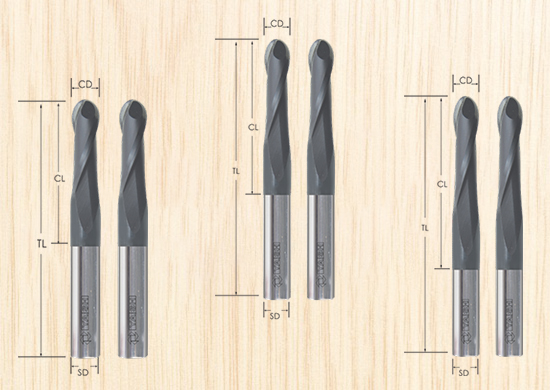

Two Flute Solid Carbide Spiral Ball Nose
YTS 3
2&4 Flute Solid Carbide End-mill & Ball Nose.
Application: Used for efficient contour cutting, end-trimming, and panel sizing on solid wood, wood composites, plastic materials, and laminates at high feed speed. Ensure to clamp workpieces properly. It can be used on machining, point-to-point boring machines, CNC routers, and hand-held routers equipped with chucks or adapters. Cost-effective solution for brazed and spiral in tungsten carbide.
Technical Details:
PRODUCTS DESCRIPTION
Spiral Standard Ball Nose
| ORDER CODE | DIA | CUTTING LENGTH | TOTAL LENGTH | SHANK |
|---|---|---|---|---|
| YTS 3 101 | 1 | 5 | 38 | 3 |
| YTS 3 102 | 1.5 | 6 | 38 | 3 |
| YTS 3 103 | 2 | 8 | 38 | 3 |
| YTS 3 104 | 3 | 15 | 38 | 3 |
| YTS 3 105 | 4 | 22 | 45 | 4 |
| YTS 3 106 | 5 | 22 | 50 | 5 |
| YTS 3 107 | 6 | 25 | 50 | 6 |
| YTS 3 108 | 8 | 25 | 60 | 8 |
| YTS 3 109 | 10 | 30 | 75 | 10 |
| YTS 3 110 | 12 | 30 | 75 | 12 |
| YTS 3111 | 14 | 32 | 90 | 14 |
| YTS 3 112 | 16 | 45 | 100 | 16 |

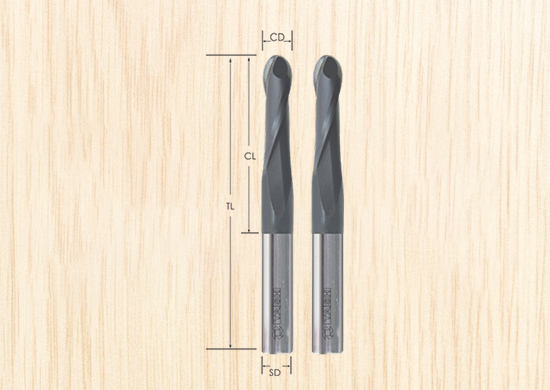

Spiral Long Ball Nose
| ORDER CODE | DIA | CUTTING LENGTH | TOTAL LENGTH | SHANK |
|---|---|---|---|---|
| YTS 3 113 | 3 | 35 | 70 | 3 |
| YTS 3 114 | 4 | 35 | 70 | 4 |
| YTS 3 115 | 5 | 40 | 70 | 5 |
| YTS 3 116 | 6 | 32 | 60 | 6 |
| YTS 3 117 | 6 | 40 | 70 | 6 |
| YTS 3 118 | 8 | 40 | 75 | 8 |
Spiral Extra Long Ball Nose
| ORDER CODE | DIA | CUTTING LENGTH | TOTAL LENGTH | SHANK |
|---|---|---|---|---|
| YTS 3 119 | 3 | 50 | 100 | 3 |
| YTS 3 120 | 14 | 50 | 100 | 4 |
| YTS 3 121 | 5 | 50 | 100 | 5 |
| YTS 3 122 | 6 | 50 | 100 | 6 |
| YTS 3 123 | 6 | 75 | 100 | 6 |
| YTS 3 124 | 8 | 50 | 100 | 6 |
| YTS 3 125 | 8 | 75 | 150 | 8 |
| YTS 3 126 | 10 | 50 | 100 | 10 |
| YTS 3 127 | 10 | 75 | 150 | 10 |
| YTS 3 128 | 12 | 50 | 100 | 12 |
| YTS 3 129 | 12 | 75 | 150 | 12 |
